Carton Sealing Machine

  • Products
  • Packaging Machines
  • Carton Sealing Machine

Semi Automatic Carton Sealing Machine

C ar to nS ea li ng Ma ch in eF XJ 6050 S em iA ut om at ic - Sri Sai Pack, Bangalore

1. FXJ-6050 Semi Automatic Carton Sealing Machine

More info
C ar to nS ea li ng Ma ch in eF XJ 5050 A S s em i a ut om at ic - Sri Sai Pack, Bangalore

2. FXJ-5050AS-semi-automatic Carton Sealing Machine

More info
C ar to nS ea li ng Ma ch in eF XJ 5050 B s em i a ut om at ic - Sri Sai Pack, Bangalore

3. FXJ-5050B-semi-automatic Carton Sealing Machine

More info
C ar to nS ea li ng Ma ch in eF XJ 5050 A s em i a ut om at ic - Sri Sai Pack, Bangalore

4. FXJ-5050A-semi-automatic Carton Sealing Machine

More info
C ar to nS ea li ng Ma ch in eF XJ 2550 X s em i a ut om at ic - Sri Sai Pack, Bangalore

5. FXJ-2550X-semi-automatic Carton Sealing Machine

More info

Automatic Carton Sealing Machine

A ut om at ic Ca rt on Se al in gM ac hi ne - Sri Sai Pack, Bangalore

Automatic Carton Sealing Machine

More info
C ar to nS ea li ng Ma ch in eF XJ 6050 S em iA ut om at ic - Sri Sai Pack, Bangalore

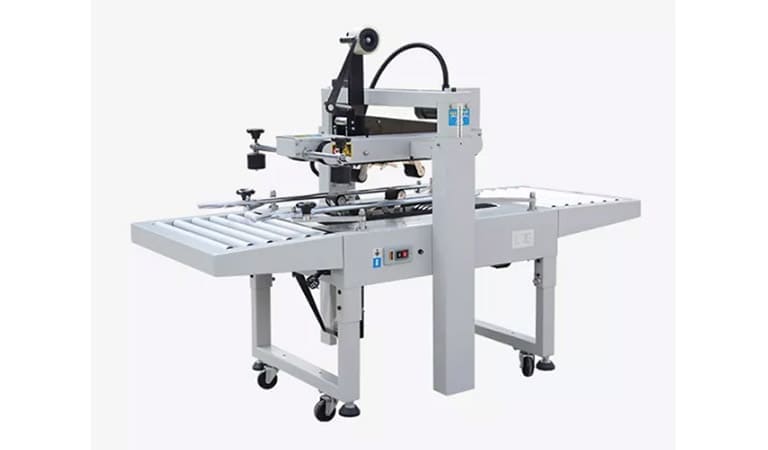

1. FXJ-6050 Semi Automatic Carton Sealing Machine


Technical Specifications:
MODEL FXJ-6050
Voltage (V/Hz) AC 220/50 110/60
Power (kw) 200
Max. Carton Size (W×H)(mm) 500×600
Min. Carton Size (W×H)(mm) 180×130
Speed (m/min) 20 m/min (30 cartons/min)
Adhesive Tape Materials BOPP, PVCadhesive tape, water-free adhesive tape
Height of Table (mm) 630-780
Width of Adhesive Tape (mm) 48, 60, 76 (optional)
External Dimensions (L×W× H)(mm) 1755×800×(960-1605)
Net Weight (kg) 150
Max. Conveyor Load(kg) 30

Key Features:

  • Reduces tape waste
  • Versatile – Capable of closing a wide variety of case dimensions
  • Applies tape onto cases accurately, uniformly and repeatedly.
  • Upgraded tape head accepts 48, 60, 76 mm tape
  • Excellent product presentation
  • Quickens the taping process
  • Reduces operator fatigue
  • Easy to use and maintain

Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.

C ar to nS ea li ng Ma ch in eF XJ 5050 A S s em i a ut om at ic - Sri Sai Pack, Bangalore

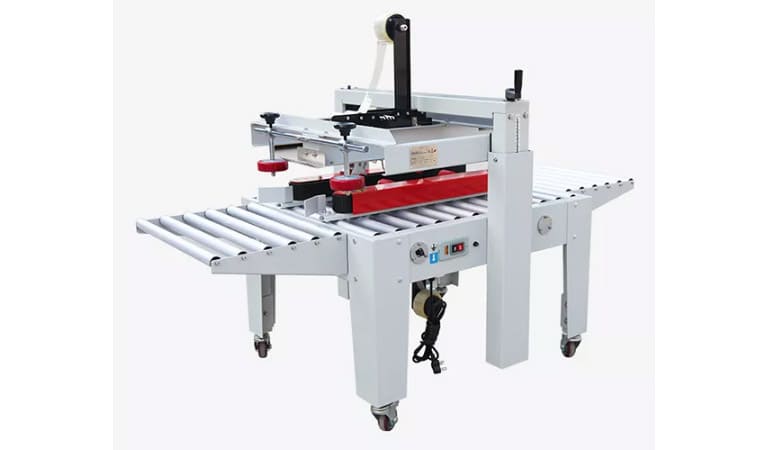

2. FXJ-5050AS Semi Automatic Carton Sealing Machine


Technical Specifications:
MODEL FXJ-5050AS
Voltage (V/Hz) AC 220/50 110/60
Power (W) 200
Max. Carton Size (W×H)(mm) 500×500
Min. Carton Size (W×H)(mm) 80×90
Speed (m/min) 20 m/min (30 cartons/min)
Adhesive Tape Materials BOPP, PVCadhesive tape, water-free adhesive tape
Height of Table (mm) 580-780
Width of Adhesive Tape (mm) 36, 48
External Dimensions (L×W× H)(mm) 1750×880×(1300-1500)
Net Weight (kg) 115
Max. Conveyor Load(kg) 30

Key Features:

  • Reduces tape waste
  • Versatile – Capable of closing a wide variety of case dimensions
  • Applies tape onto cases accurately, uniformly and repeatedly.
  • Upgraded tape head accepts 48, 60, 76 mm tape
  • Excellent product presentation
  • Quickens the taping process
  • Reduces operator fatigue
  • Easy to use and maintain

Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.

C ar to nS ea li ng Ma ch in eF XJ 5050 B s em i a ut om at ic - Sri Sai Pack, Bangalore

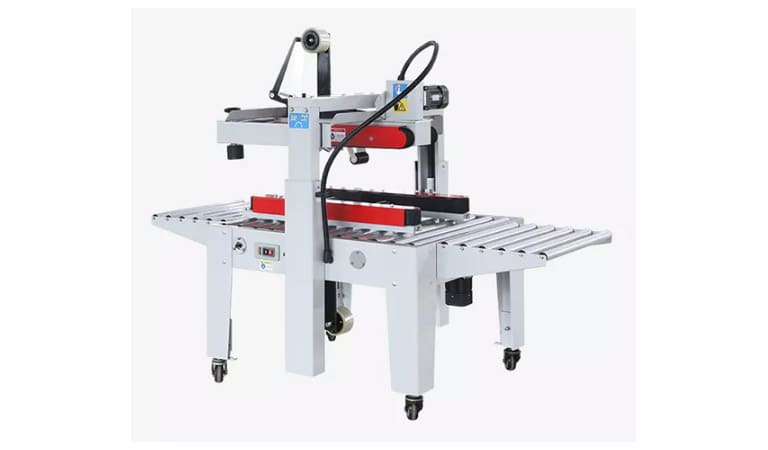

3. FXJ-5050B Semi Automatic Carton Sealing Machine


Technical Specifications:
MODEL FXJ-5050B
Voltage (V/Hz) AC 220/50 110/60
Power (kw) 270
Max. Carton Size (W×H)(mm) 500×500
Min. Carton Size (W×H)(mm) 130×120
Speed (m/min) 20 m/min (30 cartons/min)
Adhesive Tape Materials BOPP, PVCadhesive tape, water-free adhesive tape
Height of Table (mm) 580-780
Width of Adhesive Tape (mm) 48, 60, 76 (optional)
External Dimensions (L×W× H)(mm) 1730×950×(960-1550)
Net Weight (kg) 125
Max. Conveyor Load(kg) 30

Key Features:

  • Reduces tape waste
  • Versatile – Capable of closing a wide variety of case dimensions
  • Applies tape onto cases accurately, uniformly and repeatedly.
  • Upgraded tape head accepts 48, 60, 76 mm tape
  • Excellent product presentation
  • Quickens the taping process
  • Reduces operator fatigue
  • Easy to use and maintain

Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.

C ar to nS ea li ng Ma ch in eF XJ 5050 A s em i a ut om at ic - Sri Sai Pack, Bangalore

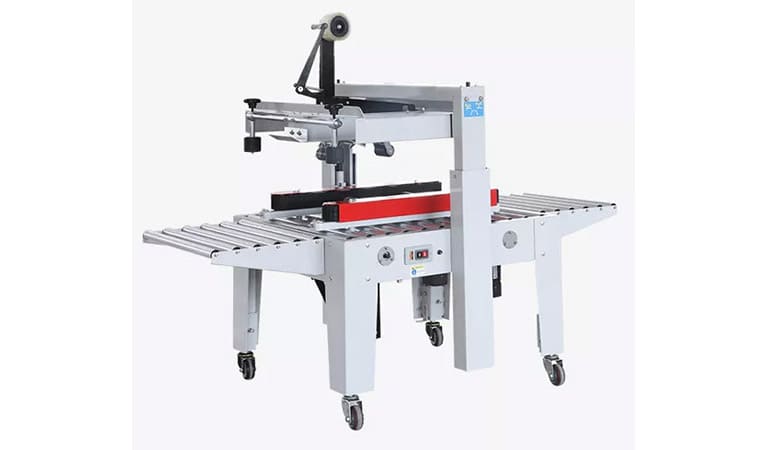

4. FXJ-5050A Semi Automatic Carton Sealing Machine


Technical Specifications:
MODEL FXJ-5050A
Voltage (V/Hz) AC 220/50 110/60
Power (kw) 200
Max. Carton Size (W×H)(mm) 500×500
Min. Carton Size (W×H)(mm) 130×120
Speed (m/min) 20 m/min (30 cartons/min)
Adhesive Tape Materials BOPP, PVCadhesive tape, water-free adhesive tape
Height of Table (mm) 580-780
Width of Adhesive Tape (mm) 48, 60, 76 (optional)
External Dimensions (L×W× H)(mm) 1730×950×(960-1550)
Net Weight (kg) 120
Max. Conveyor Load(kg) 30

Key Features:

  • Reduces tape waste
  • Versatile – Capable of closing a wide variety of case dimensions
  • Applies tape onto cases accurately, uniformly and repeatedly.
  • Upgraded tape head accepts 48, 60, 76 mm tape
  • Excellent product presentation
  • Quickens the taping process
  • Reduces operator fatigue
  • Easy to use and maintain

Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.

C ar to nS ea li ng Ma ch in eF XJ 2550 X s em i a ut om at ic - Sri Sai Pack, Bangalore

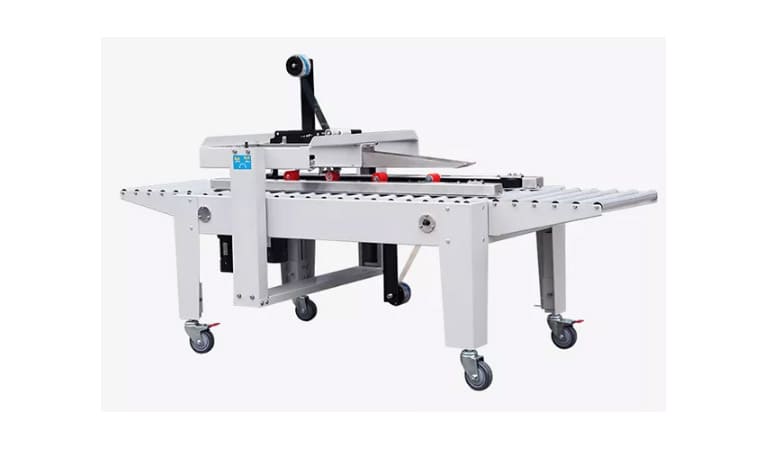

5. FXJ-2550X Semi Automatic Carton Sealing Machine


Technical Specifications:
MODEL FXJ-2550X
Voltage (V/Hz) AC 220/50 110/60
Power (kw) 220
Sealing Speed 24-25 Cartons for Reference
Max. Carton Size (W×H) (mm) Unlimited*500*200
Min. Carton Size (W×H) (mm) 130*80*45mm
(When the width is more than 130mm, the minimum height can reach at 40mm.)
Taping Speed (m/min) 20( Fixed mode:25-45 cartons / min ; Automatic mode:10-25 cartons / min )
Adhesive Tape Used BOPP, Water-free Adhesive Tape, PVC Adhesive Tape
Height of Table (mm) 580-780
Width of Adhesive Tape (mm) 36,48
External Dimensions (L×W×H) (mm) 1320(with Bracket2140)*930*1200-1340mm
Net Weight (kg) 125
Transmission Type Side Belt Transmission
Conveyor Belt Speed 20m/min
Max. Loading Weight 20kg
Max. External Diameter of Tape 300mm

Key Features:

  • Reduces tape waste
  • Versatile – Capable of closing a wide variety of case dimensions
  • Applies tape onto cases accurately, uniformly and repeatedly.
  • Upgraded tape head accepts 48, 60, 76 mm tape
  • Excellent product presentation
  • Quickens the taping process
  • Reduces operator fatigue
  • Easy to use and maintain

Warranty: This machine comes with a 12 month manufacturer 'return to base' warranty. In the event of a breakdown (which is extremely rare), simply send the machine to us and we will repair and send back to you.
